CTD / CTD_S - Counter Down

This counter function block counts down. In case of a rising edge at the input CD and LOAD = FALSE, CV decrements by one. When CV reaches the value 0, Q is set to TRUE and the function block stops counting. If LOAD = TRUE, the counter is initialized by the value of the input PV. To enable the counting process, the input LOAD must be FALSE. Otherwise the counter will always be re-initialized.

The function block is available as standard function block CTD and safety-related function block CTD_S.

CTD

Parameter	Data types	Description
CD	BOOL	If a rising edge is detected, CV decrements by one.
LOAD	BOOL	If TRUE, the counter is initialized with PV. If FALSE, counting is enabled.
PV	INT	Preset value
Q	BOOL	TRUE if CV = 0
CV	INT	Counter result

CTD_S

Parameter	Data types	Description
CD	SAFEBOOL	If a rising edge is detected, CV decrements by one.
LOAD	SAFEBOOL	If TRUE, the counter is initialized with PV. If FALSE, counting is enabled.
PV	SAFEINT	Preset value
Q	SAFEBOOL	TRUE if CV = 0
CV	SAFEINT	Counter result

NOTE:

Function blocks have to be instantiated. Like variables, instances have to be declared before they can be inserted in a code body. Instances must be unique within the POU. In the following example, the instance name 'CTD_S_1' is used.

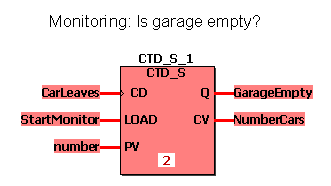

Example for a safety-related function block declaration CTD_S

Variables declarations

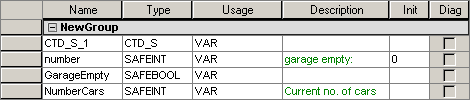

Local declarations:

Global declarations (I/O variables):

NOTE:

If you want to use the standard function block CTD in your code worksheet, you have to select the data type 'CTD' for the function block instance in the local variables worksheet. Accordingly, the data types 'BOOL' and 'INT' must be used instead of 'SAFEBOOL' and 'SAFEINT'.
